Automatic Box Making Folder Gluer Pasting Machine for Aluminum Foil Roll Box Folding

Name: Automatic Box Making Folder Gluer Pasting Machine for Aluminum Foil Roll Box Folding
Brand: Finest
Price: 15 USD

Buy cheap Automatic Box Making Folder Gluer Pasting Machine for Aluminum Foil Roll Box Folding product

Warranty : 4 years

Type : Other

Applicable Industries : Manufacturing Plant

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 4 years

Core Components : PLC, Motor

Condition : New

Packaging Type : case

Packaging Material : Wood

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 380V

Power : 2.2KW

Place of Origin : Jiangsu, China

Brand Name : Finest

Weight : 1500 KG

Dimension(L*W*H) : 8000*900*1300mm

Key Selling Points : Easy to Operate

Product Name : Folding Gluing Machine

Max. workable width : 350mm

Min.cutting Width : 40mm

Max. unwinding Diameter : 340mm

Production Capacity : 300 times/min

Packaging Details : wooden case

Port : shanghai

Supply Ability : 5 Set/Sets per Week

Price : $15,000.00/sets 1-1 sets

MOQ : 1

Contact Now

Product Description

FDF series high-speed box pasting machine is designed and manufactured by our factory based on absorbing the advantages of domestic and foreign box pasting machines. It’s suitable for various paper boxes paste and automatic forming, with the features of reasonable structure, strong suitability, convenient operation and quick speed etc. and it is an ideal box pasting equipment after printing.

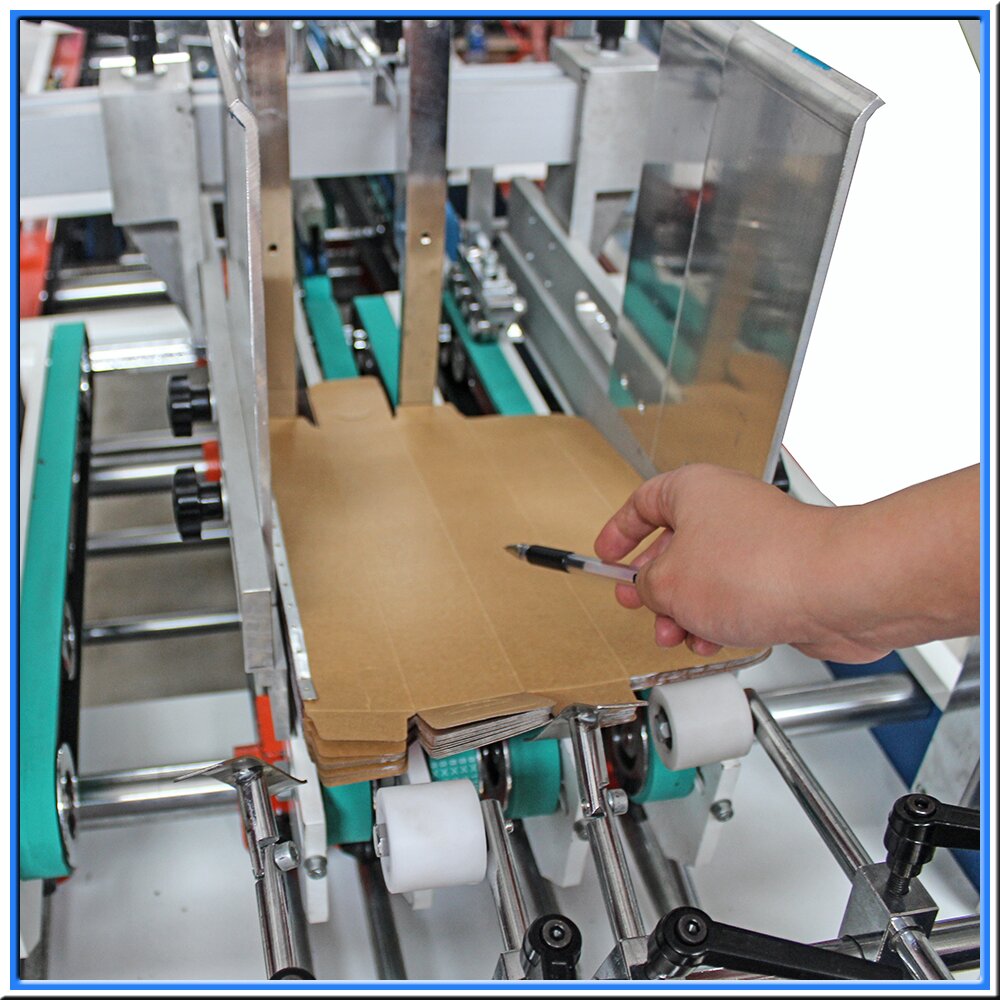

Automatic Box Making Folder Gluer Pasting Machine for Aluminum Foil Roll Box Folding

Characteristics of the product:

1.The whole machine is reasonable on design, low rate on breakdown and saving on electricity. 2.The speed adjustment can be finished for once and the front, middle and behind drives of the equipment are synchronic totally, so it’s very convenient to operate. 3.The electric control is advanced and the front and behind of the equipment all can control the running of paper feeding part. When the paper feeding part feeds paper, it begins to count with photoelectric technology. It also can set up a certain batches to feed paper and freely control the interval time between two batches. So it’s very simple to operate. 4.Quick speed and the middle grade paper box can produce 20000~30000 boxes hourly.

Main Technical Index:

1.Max Line Speed: 180 m/ min; 2.Suitable paper medium: 210 ~ 600 g/m2; 3.Pasting basic mode: Edge pasting in general (two sides are also OK) 4.Paper feeding mode: Automatically and continuously 5.Using adhesive: Solvent 6.Required Power: AC220

Item	Value
Product Name	Automatic Folder Guler Machine
MaxLine Speed	180m/ min
Suitable PaperMedium	210~ 600g/m2
Pasting BasicMode	Edge pasting in general two sides are also OK
PaperFeeding Mode	Automatically and continuously
Using Adhesive	Hot melt adhesive or Cold glue
Total Power	approx AC 220V/380V,22 KW
Total Weight	approx 1500Kg
Overal Dimension	80009001300mm
Counting range	Full-automatic counting

Company Profile

Jiangsu Finest Technology Co., Ltd.

Is a company dedicated to the research, development, production and sales of aluminum foil products and aluminum foil product machine related products. More than 27 years of advanced production management experience in the aluminum foil machine production line, with a wide range, good quality, reasonable price and fashionable design. For example, aluminum foil for food packaging, hairdressing foil, barbecue paper, large aluminum foil roll, aluminum foil container, aluminum foil rewinder, manual aluminum foil cutter and aluminum foil container production line. With the pace of globalization, our company spares no effort to become a first-class supplier of such products.

Exhibition

Cooperative Customers

Packing & Delivery

FAQ

1. Are you trading company or manufacturer ? We are factory.

2.What kind of terms of payment? T/T, L/C,D/A,D/P,Western Union are available.

3.Can you do Customization & Reproduction if I provide a photo? Yes, we do Customization & Reproduction service, please check the details and sample above. You need to send the pictures to our email, tell us the specification you want, Then we will quote you exact price.We will take photos for you check.

4.Does the packaging safe and arrive in good conditions? Yes, Safe Packing guarrantee, all the products will arrive your door under good conditions. We response to problem of shipping if there unfortunately is.

5.How long does it usually take to deliver the product? We'll make the shipment to you immediately.It will take about 18 to 40 days arrive worldwide. Accurate delivery time depends on the specific quantity

6.Is drop shipping abailable? Yes, it is, we can send to worldwide."

Automatic Box Making Folder Gluer Pasting Machine for Aluminum Foil Roll Box Folding Images
